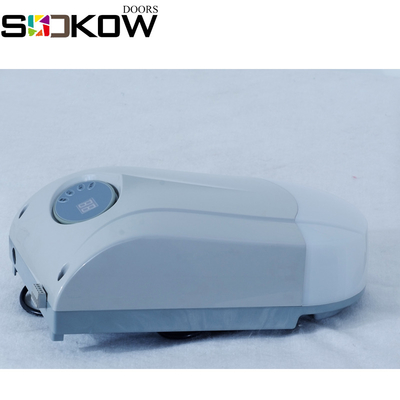

Remote control electric roll up garage door opener motor parts
Description:
1) Doors are easily opened by hand by the releasing system in case of power off
2) Simple programming of operation settings
3) Built-in receiver on the control board allows you to program 20 transmitters
4) One push of the remote button and you drive straight into your garage
5) Availability of a lamp for garage lighting (10 W), the courtesy light allows you to see inside the garage
6) Automatic refund function in case of obstacles
7) Availability of automatic closing function with programmed delay time
8) Different torque to suit your garage door: 800N, 1000N, 1200N, 1500N
Advantage:
1. Digital display & easy programming;
2. Remote control with rolling code;
3. Soft start & stop, powerful, low noise;
4. Self-lock fuction;
5. Reverse fuction when meeting obstacle;
6. Door unclosed alarm & automatic door closing fuction.
|
Technical specification: |
|
|
Power lnput |
110/220 VAC±10% |
|
Motor |
50Hz 24V DC 100W |
|
Courtesy light time |
3minutes |
|
Working temperature |
-20°~70℃ |
|
Relative Humidity |
<90% |
|
Open and close force |
800N~1500N |
|
Reception frequency |
433.92MHz |
|
Sensitivity |
>1V for correct receiver signal(average range 50m,with an aerial) |
|
Decoding |
Rolling code 27A |
|
Transmitter power |
12V Battery |
|
Globe |
24V 5 watt |
| Technical Specifications | T5/500 | T6/600 | T8/800 |
| Max.Area-(lnsulated Steel Panel) | 6m² | 8m² | 12m² |
| Max.Area-(Wooden Panel) | not suitable | not suitable | not suitable |
| Maximum Speed | 160mm/s | 160mm/s | 140mm/s |
| Duty Cycle | 30% | 30% | 30% |
| Nominal lnput Voltage | 230V AC±10% | 230V AC±10% | 230V AC±10% |
| Motor | 24V DC/60W | 24V DC/60W | 24V DC/80W |
| Transformer | 75VA | 110VA | 110VA |
| Degree of Protection | IP40 | IP40 | IP40 |
| Operating Temperature | -30℃ to +60℃ | -30℃ to +60℃ | -30℃ to +60℃ |
| Radio | KEELOQ Hopping Code,433MHz | KEELOQ Hopping Code,433MHz | KEELOQ Hopping Code,433MHz |
| TX Capacity | Stadard2 Max.12Transmitter | Stadard2 Max.12Transmitter | Stadard2 Max.12Transmitter |
| Maximum Distance | 80m | 80m | 80m |
| Speed Regulation | Yes | Yes | Yes |
| Slow Start/Stop Function | Yes | Yes | Yes |
| Safety Obstruction Sensing | Yes | Yes | Yes |
| Weight | 5kg | 5kg | 5kg |
| Rail | Steel 1-piece | Steel 3-piece | Aluminum 1-piece |
| Standard Door Height | 2400mm | 2400mm | 2400mm |
| Extension Kit |
Extemdable with 001-08080-001.500mm |
Extemdable with 001-08080-001.500mm |
Not Available |
| Maximum Door Height | 2900mm | 2900mm | 2400mm |
| Material Length Thickness | Steel/Chain,3050mm,1.2mm | Steel/Chain,3050mm,1.2mm | Alum/Belt,3050mm,2.0mm |
FAQ:
A, Are you manufacturer?
Yes,We are one of the professional manufacturer of sectional door,we have professional team of workers ,service and inspection system.
B, How to order a sample?
we have small sample in stock, it is free of charge,you just need to handle with the freight.
C, What are your main products?
The main products are sectional door,we can offer different material panel with sectional,such as garage door,industrial door,solid wood door,aluminum door,glass door.
D, What is MOQ?
one set for trial order also Can be accepted.
E. Where is your factory?
We are located in Wuxi,it is very close to Shanghai,only takes 40minutes by high speed train.The address is No.79-15 Chunyang industrial zone,new district,Wuxi,China
