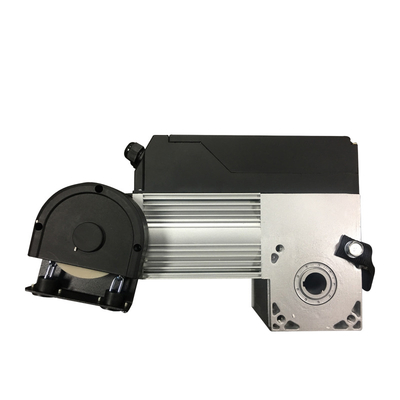

Industrial Mechanical Operator Euro Standard Limit Door Motor With CE And RoHs

1 Set
MOQ
$184.00(1 - 49 sets) $150.00(>=50 sets)
Price
Industrial Mechanical Operator Euro Standard Limit Door Motor With CE And RoHs
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
After-sale Service: Online Technical Support, Free Spare Parts
Project Solution Capability: Graphic Design, Total Solution For Projects
Application: Industrial Door
Design Style: Industrial
Model Number: Industrial Door Opener
Type: Industrial Door Opener, Industrial Door Operator
No-load Continuous Running Time: 15min
Hand Release Device: 360°Hand-pulled Chain
Output Torque: 100N.m
Thermal Protection Temperature: 120℃
Lubricating System: Oil-immersed
Rated Power: 550W
No-load Rotation Speed: 24r/min
Maximum Limit Travel: Output Shaft Rotates 20 Rounds
Product Name: Automatic Sectional Overhead Door Opener For Industrial Door
Basic Infomation
Model Number: Industrial Door Opener
Payment & Shipping Terms
Packaging Details: Netural Carton(cm): motor:58*35*20 control:31*28*17.5
Supply Ability: 5000 Set/Sets per Month Industrial Door Operator
Product Description
Product Description

Model Industrial Sectional Door Operator

1. Oil immersed gear, durable aluminum alloy casing.
2. Optional for built in control board or external control unit, integrated receiver.
3. Keypad/single button interface.
4. Alarm lamp, photo beam & safety beam interface.
5. Self-locking structure, mechanical limit switch.
6. Standard output shaft aperture dia.25.40 mm, using metal adapter can transfer to dia.40.00 mm.
7. Hand chain manual release systems for emergency purpose.
Output Torque
300w - 750w
Motor Power
40N.m - 150N.m
Max. Door Surface
20sq.m - 45sq.m
Motor Size
232*151*368mm
Limit Switch
Mechanical limit switch
Output Shaft
φ25.4mm
Reduction Ratio
58:1
Remote Control
≥30m
Recording of up
25
Frequency
433.92MHz
Work Duty
S2 15min
Working Temperature
-20℃~+70℃
Package Weight
13kg
Hand Hoisting Mechanism
Door opener sets the hand-lift mechanism, so just pulling the hand chain directly when power outage , then the door can pull the door to operate.
Clutch
Door opener sets clutch device that mainly used for installation debugging or maintenance.
Limiting Mechanism
Door opener adopts rotary mechanical limit mechanism to control the portasystemic stroke, which is with accurate limit, high repetition precision, and easy to adjust the trip.
Thermal Protection
When the motor reaches the predetermined temperature, the system will automatically power down, then access to the automatic protection state.
Products Show
Packing & Delivery
Packing Details : Standard Export Carton, then in pallet
Delivery Details : Depends on the quantity
Company Profile
Xuchang Lifter M&E Equipment Co.,Ltd was evolved under the background of strategic adjustment of Xuji Group(State owned), located in Xuchang City of Henan province,center of China. Management team and R&D personnels have been focusing on the garage door industry more than 10 years,and specializing in villa garage doors & industrial doors.We are a manufacturer offering overall solutions with advanced technology.

Relying on the great design team and more than 10 years of professional production experience,by integrating the industry resources and judging on the industry development trend,we established an European standard continuous production line,designed and developed a new generation of PU thermal insulated panel with safer function,more reasonable structure and attractive outlook,lifting the garage door manufacturing technology to a historical level. Lifter has established a set of service system with customer-centered,integrating production,design,development,sales,installation and maintenance together. Our doors are installed all over the world, they are our best advertisements.

Pre-Sales Service

Inquiry and consulting support.Have own R&D team,custom-make ur requirement.View our Factory.

Title goes here.

Technical Support all the time.
Warranty: one years. Free replacement will be sent in next order.
Certifications
FAQ
1. who are we?
We are based in Henan, China, start from 2017,sell to North America(40.00%),South America(30.00%),Eastern Europe(10.00%),Mid East(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Garage Door,Garage Door Panel,Industrial Door,Door,Door Hardware

4. why should you buy from us not from other suppliers?
we established an European standard continuous production line,designed and developed a new generation of insulated garage door panel with safer function,more reasonable structure and attractive outlook.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Spanish,Japanese,French,Korean,Italian
